An uninterrupted, clean water supply depends entirely on the backbone of your water system: the borehole delivery infrastructure. If you are drawing water from a deep aquifer, relying on sub-standard delivery lines is a ticking financial time bomb. Selecting a high-quality column pipe is the single most critical decision you will make to safeguard your submersible pump investment and ensure structural longevity.

As a leading plastic pipe manufacturer in Indore, Vishal Pipes has spent years engineering high-performance piping solutions specifically tailored to handle extreme underground hydrostatic pressures. This comprehensive guide covers the essential technical specifications, structural types, current pricing dynamics, and step-by-step installation practices required to set up a flawless borewell system.

What is a Column Pipe and Why Does It Matter?

A column pipe—often referred to as a riser or submersible pump pipe—serves as the vertical conduit connecting an underground submersible pump to the surface distribution network.

Unlike standard plumbing lines, these structures endure brutal multi-directional stress. They must simultaneously support their own dead weight, the immense weight of the water column, and the structural mass of the heavy submersible pump motor. Additionally, they must absorb continuous internal hydrostatic pressures and the intense torque generated whenever the pump cycles on or off. Choosing a structurally sound pipeline prevents devastating structural failures that could cause your entire pump assembly to drop to the bottom of the borewell.

Primary Types of Column Pipes

Most modern borewell setups utilize Unplasticized Polyvinyl Chloride (uPVC) for vertical delivery lines due to its immunity to rust and chemical scaling. These pipelines are systematically categorized by wall thickness and pressure ratings to match specific operational depths:

[Submersible Pump] ---> [V4/V6 uPVC Column Pipe] ---> [Borewell Casing] ---> [Surface Outflow]

1. Eco / Light Duty Series

• Depth Rating: Ideal for shallow wells up to 250–350 feet.
• Best Used For: Low-pressure domestic wells or small-scale rural setups.

2. Medium Duty / Standard Series

• Depth Rating: Engineered for intermediate depths ranging from 350–550 feet.
• Best Used For: Standard agricultural setups and residential complexes.

3. Heavy Duty / Heavy Series

• Depth Rating: Specifically built for deep deep-well operations spanning 550–900 feet.
• Best Used For: Demanding industrial extractions and deep agricultural irrigation.

4. Super Heavy Duty Series

• Depth Rating: Ultimate structural tier designed for extreme depths exceeding 900–1,200 feet.
• Best Used For: High-capacity municipal wells and rugged commercial water mining.

Market Price Dynamics

The procurement cost of a premium uPVC vertical pipe system fluctuates based on dimensional metrics and load ratings. The table below outlines standard market price distributions for major configurations:

Pipe Outer Diameter (Inch)	Wall Classification	Average Market Price Range (INR per Meter)
1.0 Inch (25mm)	Standard / Medium	₹110 – ₹160
1.25 Inch (32mm)	Heavy / Medium	₹150 – ₹220
1.5 Inch (40mm)	Heavy Duty	₹210 – ₹290
2.0 Inch (50mm)	Heavy / Super Heavy	₹320 – ₹450
3.0 Inch (75mm)	High Capacity Industrial	₹650 – ₹900

SEO Pro Tip: Local supply chains alter baseline costs. If you are retrofitting an estate or structural system, contacting a certified plastic pipe dealer in Indore will give you access to bulk logistical discounts that significantly reduce your overall upfront project costs.

Precision Installation Guide

Improper installation causes more than 80% of deep-well line failures. Follow this professional installation checklist to guarantee a secure, leak-proof deployment:

1.Inspect Pipes and Couplings:Step 1: Quality Check.

Carefully inspect all thread sections, rubber sealing rings, and outer profiles. Wipe down all joint areas to clear out dust, grit, or manufacturing debris that could disrupt the seal.

2.Equip the Pump with a Top Adaptor:Step 2: Foundation Hookup.

Securely thread a heavy-duty metal metal-to-uPVC adaptor onto the pump discharge outlet. Use high-grade Teflon tape to form an airtight, watertight seal.

3.Seat the EPDM O-Ring Safely:Step 3: Sealing.

Ensure the thick EPDM (Ethylene Propylene Diene Monomer) rubber ring sits flush inside its designated groove. Apply an eco-friendly, non-toxic lubricant to the female threads to prevent friction binding during assembly.

4.Thread Joints and Align the Cable:Step 4: Mechanical Assembly.

Thread the lengths together by hand until they are snug, then apply a final turn with a smooth strap wrench. Never use a pipe wrench with serrated metal teeth, as it will score the uPVC surface and create stress-fracture points. Securely fasten the submersible power cable to the main pipeline every 2–3 meters using specialized non-reactive PVC structural ties.

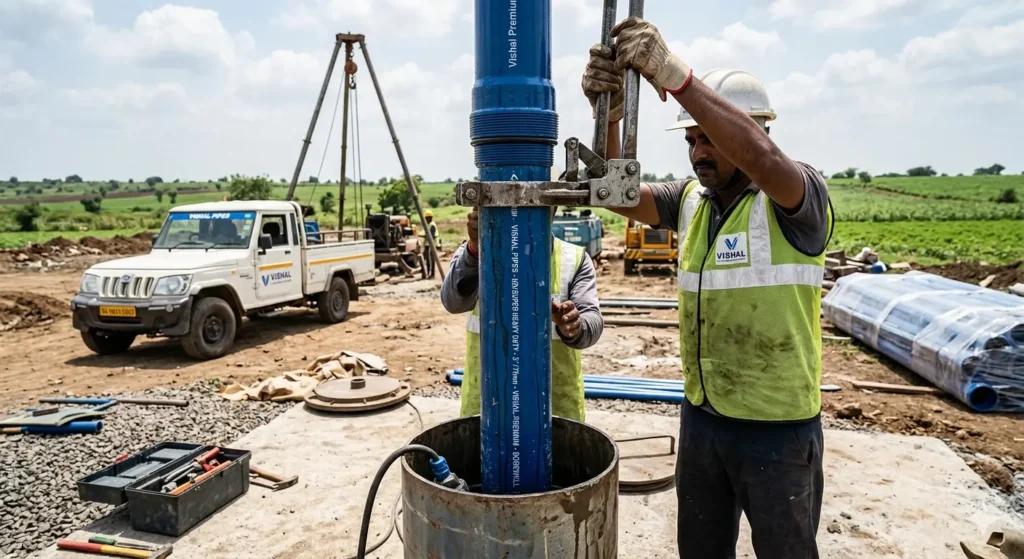

5.Lower the System and Clamp It Safely:Step 5: Final Lowering.

Slowly lower the assembled pipeline assembly down into the well casing using a heavy-duty borewell tripod winch. Fasten a robust dual-plate top clamp securely beneath the final pipe flange to anchor the entire weight firmly to the surface concrete casing pad.

Sourcing Your Infrastructure: Local Expertise Matters

Choosing the right manufacturing partner is just as critical as following the proper installation steps. When you build your system using certified products from an established plastic pipe manufacturer in Indore like Vishal Pipes, you ensure your project meets rigorous structural standards.

If you are a regional contractor or irrigation planner, working directly with a verified best column pipe dealer in Indore guarantees you receive genuine, factory-tested products backed by complete engineering warranties.

Furthermore, optimizing your entire layout means looking beyond just the main well infrastructure. Incorporating high-grade components from a trusted garden pipe dealer near me ensures that your surface-level distribution lines match the pressure capabilities and longevity of your underground system.

Why Vishal Pipes Stands Out

• High Tensile Resilience: Patented thread geometries distribute structural loads evenly across joints.
• Advanced Dual-Sealing: Premium EPDM gaskets provide a 100% leak-proof seal under shifting pressures.
• Friction-Free Flow: Ultra-smooth internal walls minimize fluid friction, cutting pump power consumption by up to 10–15%.
