Our Products

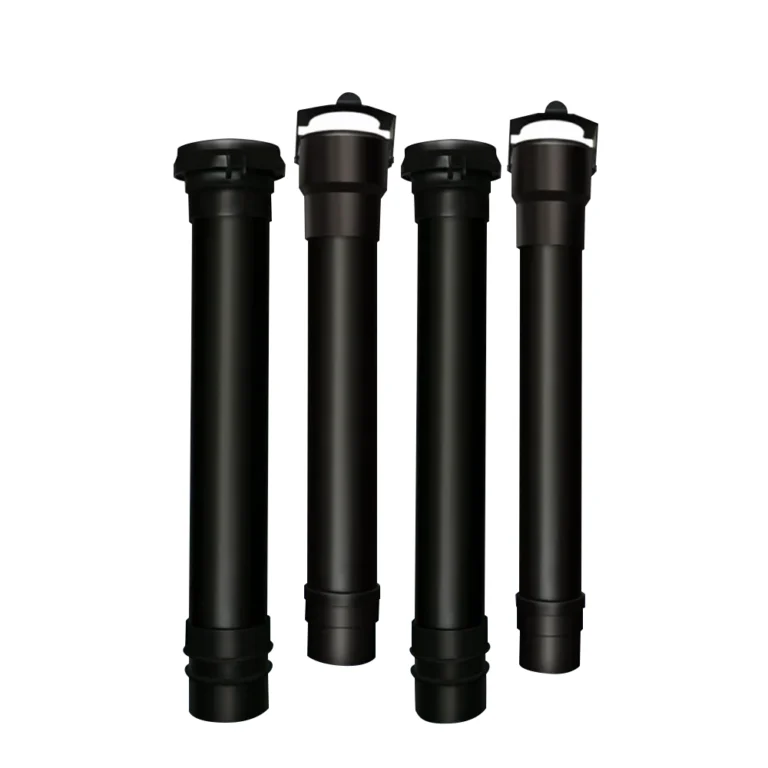

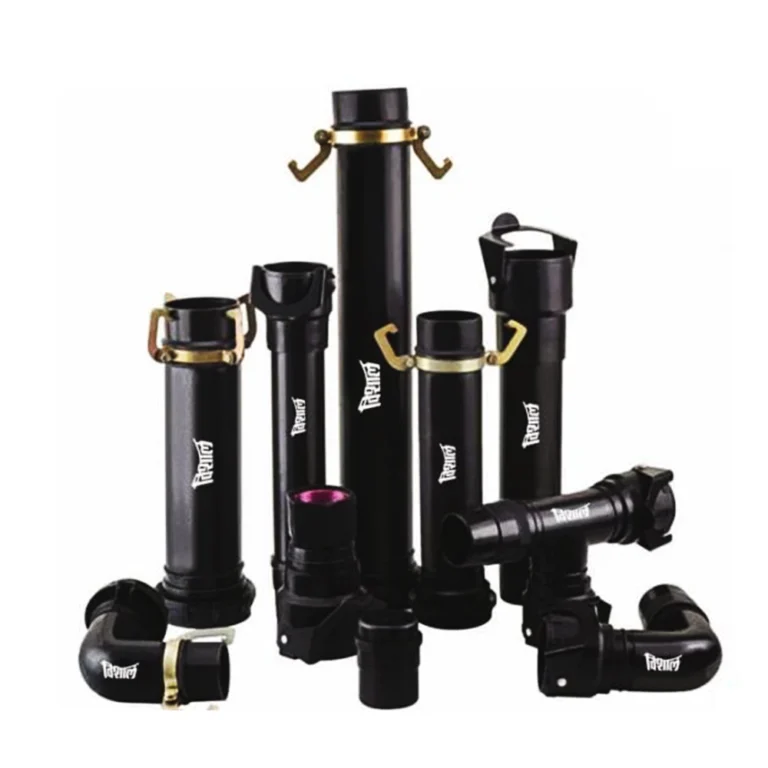

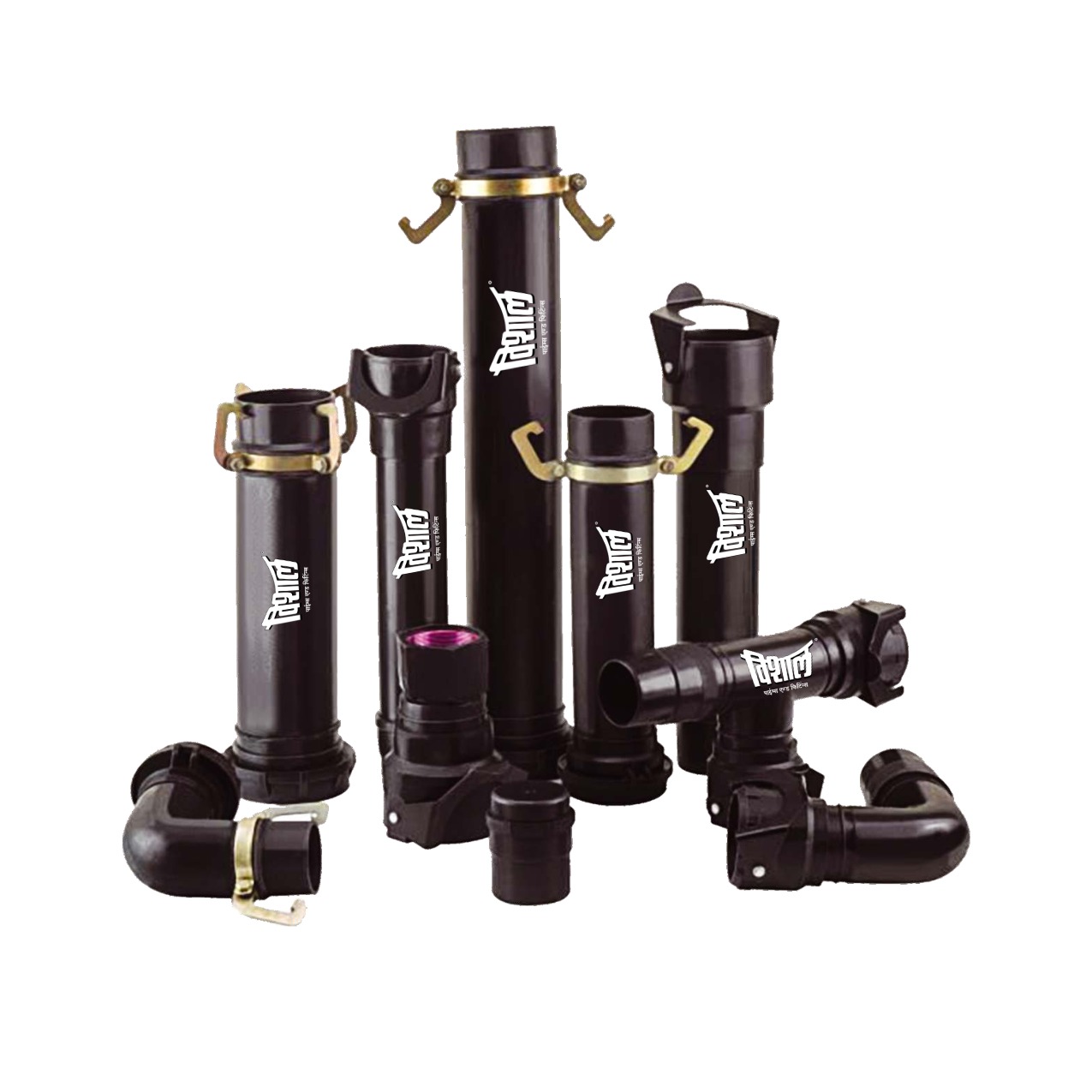

Vishal Sprinkler Pipe & Fittings
Features
• High burst strength | • Superior resistance to corrosion and chemicals
• Crack proof | • Light weight | • Tough & resilient • Leak proof | • Easy to use | • Flexible, perfect for laying on undulated lands | • Chemicals resistant | • Rust proof & UV stable | • Low friction noise | • Easy jointing • | Reduction of soil erosion
Size Range: From 50 mm to 160 mm
Pressure rating: Class 1 to Class 4
Temperature: -40 C to +60 C
Raw Material Grade: PE 63 Virgin HDPE Granules
Quality: IS: 17425 Certified
Application: Industrial applications (checking dust pollution in cement industries and mining pits), Agriculture applications, Playground and golf course maintenance, Land décor and beautification, Fish rearing
USP: The main feature of this system is that it is easy to handle, Fusion welding / butt welding, Fish rearing, Leak proof checking of dust pollution in Cement industry & mining fields

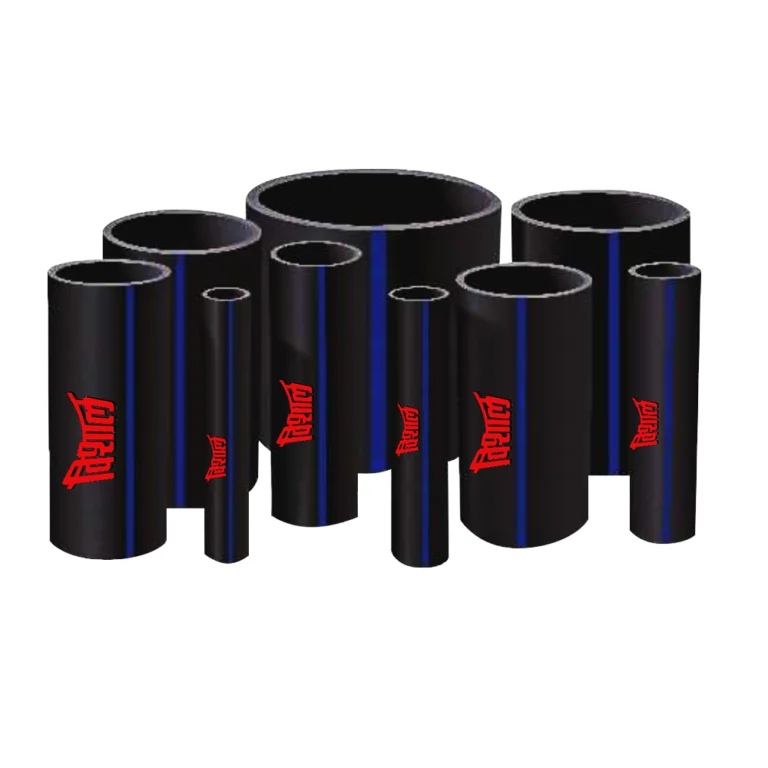

Vishal HDPE Pipe
Features
Size Range: From 16 mm to 400 mm
Pressure rating: From 2.0 to 20.0 KG/cm
Temperature: From -40 C to +60 C
Raw Material Grade: Available in PE63/PE80/PE100 Grade Virgin HDPE Granules
Quality: IS:4984 Certified
Application: Used for lift Irrigation System, Multi village/city Water Distribution, Industrial Acid, Minining Projects, Fires Mains, Sewage lines, Machine Applications, Power Plant Spent Fuel Slury, Colony Water Supply, Municipal Water Supply, Irrigation, Submersible Lowering, Bio Gas Supply, Drainage & many others.
Available in different color.

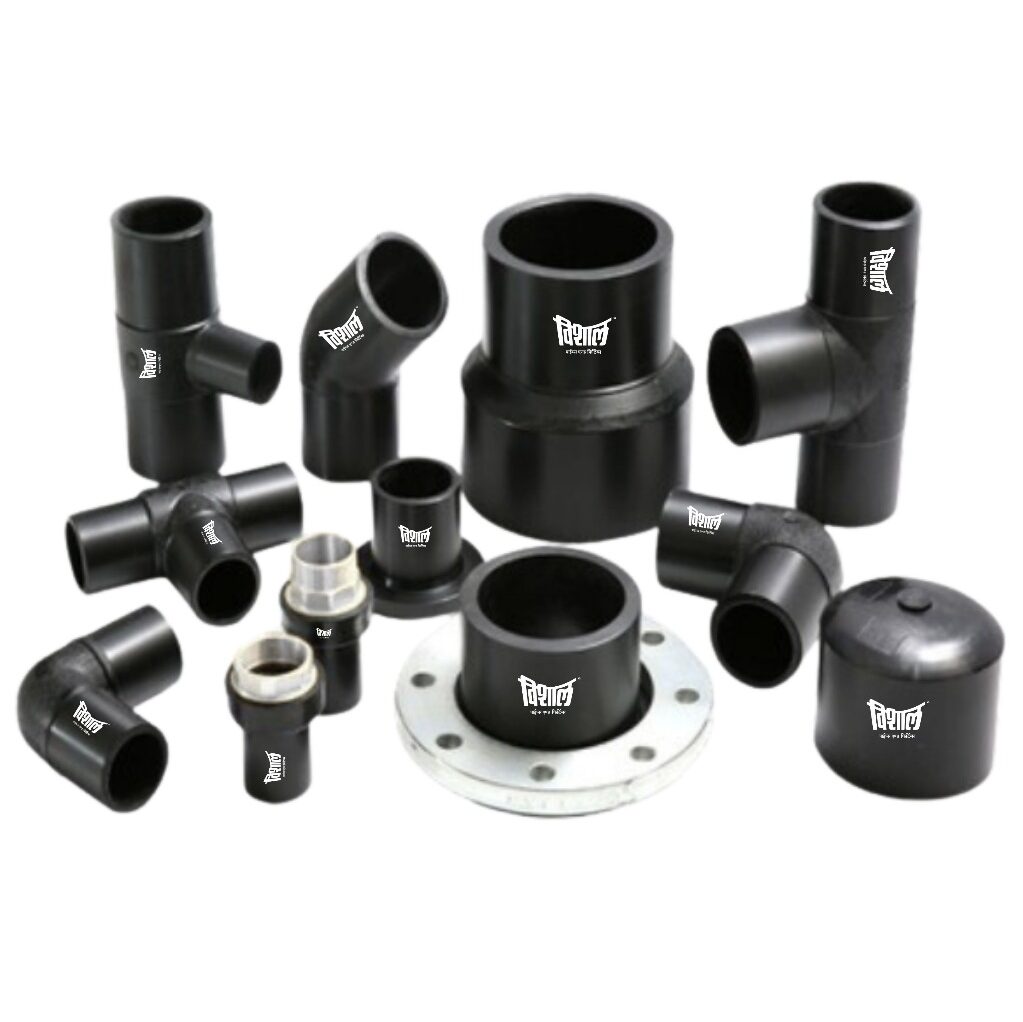

Vishal HDPE Fitting
Features
Size Range: From 33 mm
Raw Material Grade: HDPE Granules
Color: Black
Application: Best Fitting ever for pipes
Vishal Spray Pipe
Features
Size Range: 8 mm ID & 10 mm ID & 12 mm ID
Pressure rating: 16 kg to 25 kg
Temperature: -40 C to +60 C
Color: Blue
Application: Fertilizer Spray Pipe

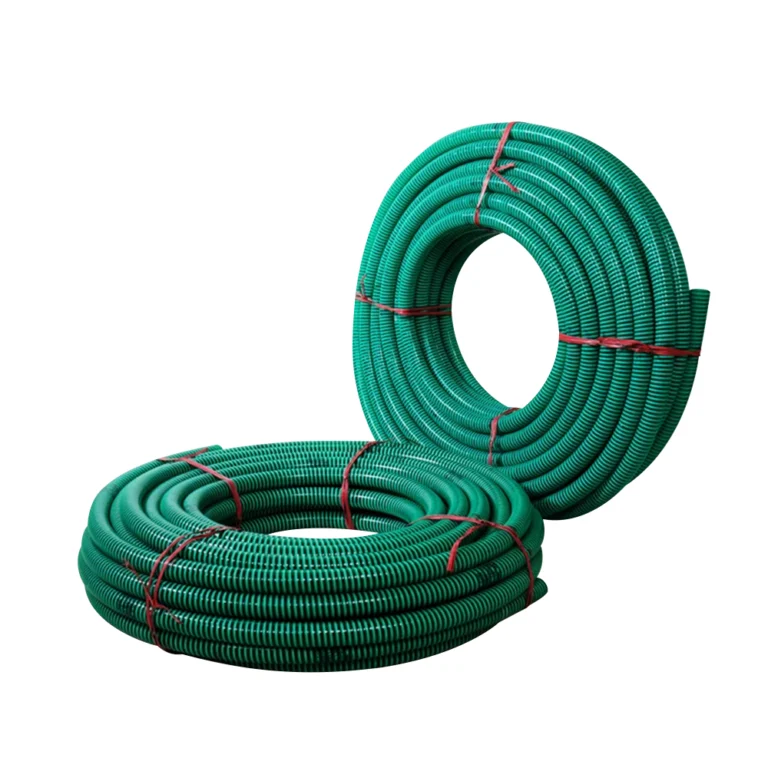

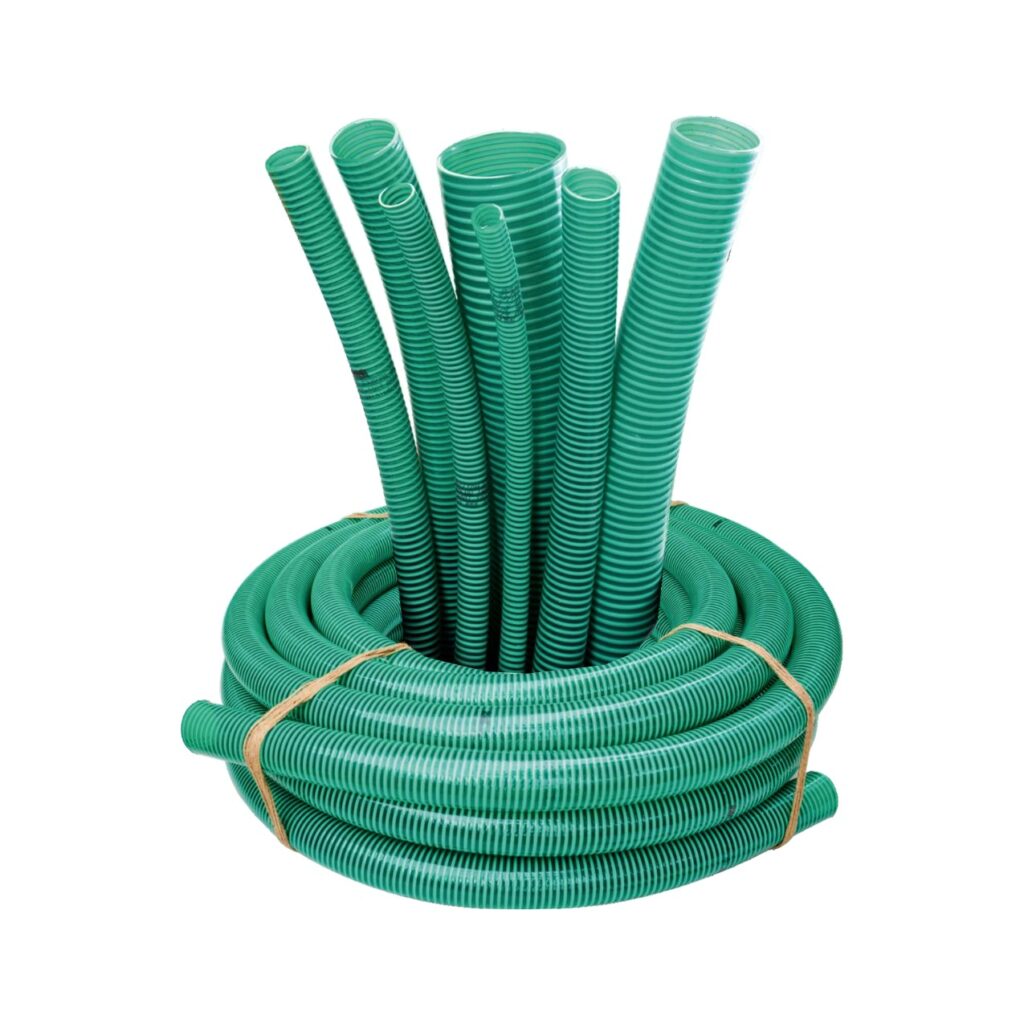

Vishal Suction Hose
Features
• Light weight | • Weather proof | • Smooth bore | • Flexible | • Easy installation & transportation
Size Range: From 19 mm to 200 mm
Pressure rating: Various Pressure Applications
Temperature: 20 C to 60 C
Raw Material Grade: Best quality PVC Resin and Chemicals
Length: 30 Meter coils
Application: Domestic & Agriculture Water Suction & Supply
Available in Different Colors: Green, Parrot Green, Blue, Gray, Orange, Pink, and Transparent White.
Also Available in Different Qualities.

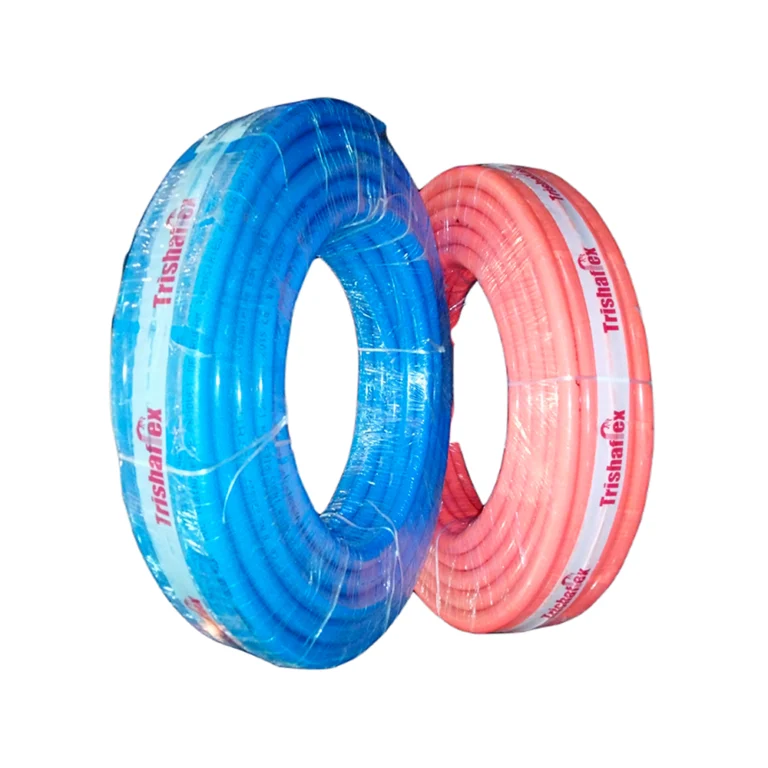

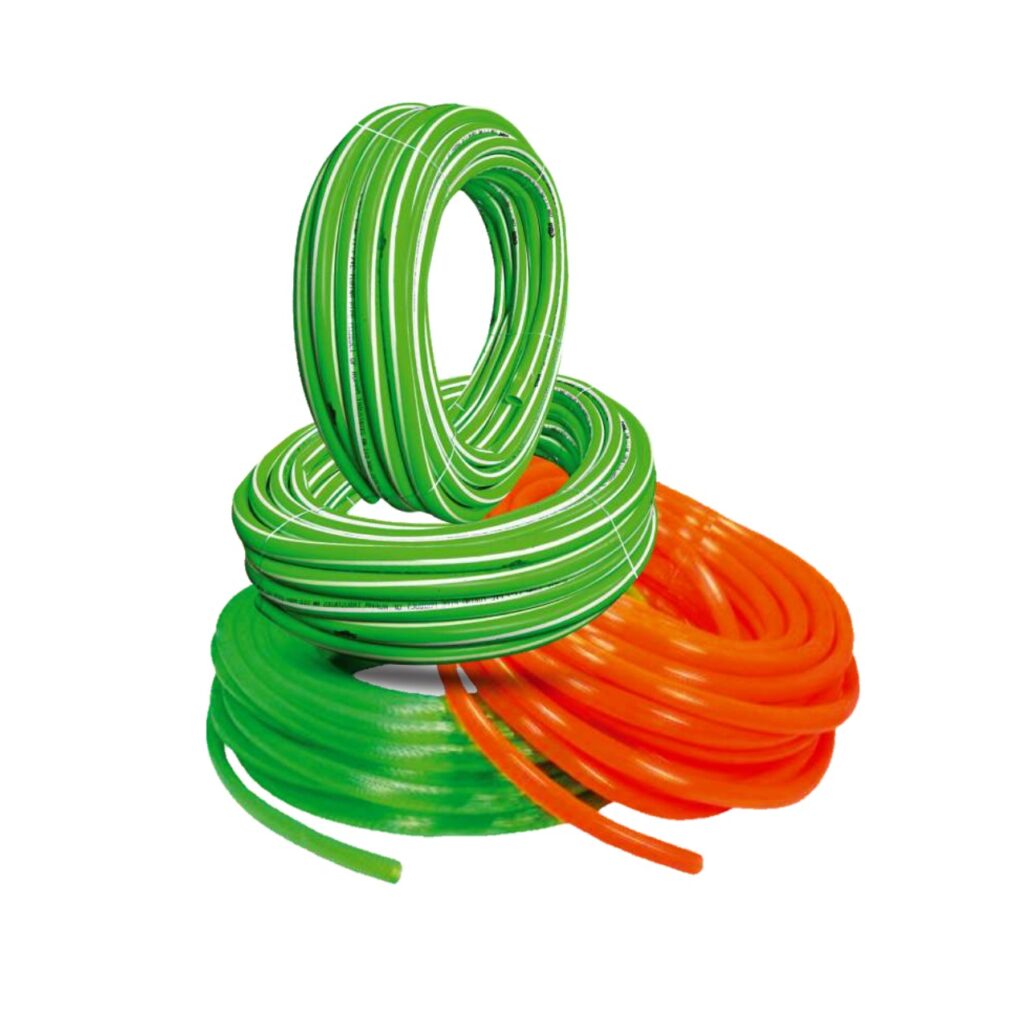

Vishal Garden Tubing
Features
Size Range: 8 mm to 38 mm
Pressure rating: Non pressure application
Temperature: 0 C to +60 C
Raw Material Grade: Best quality PVC Resin and Chemicals
Color: Variety of Transparent / Opaque / Fluorescent Color
Application: For Gardening , Air, Seed Drill, Liquid Flow, Water Flow etc

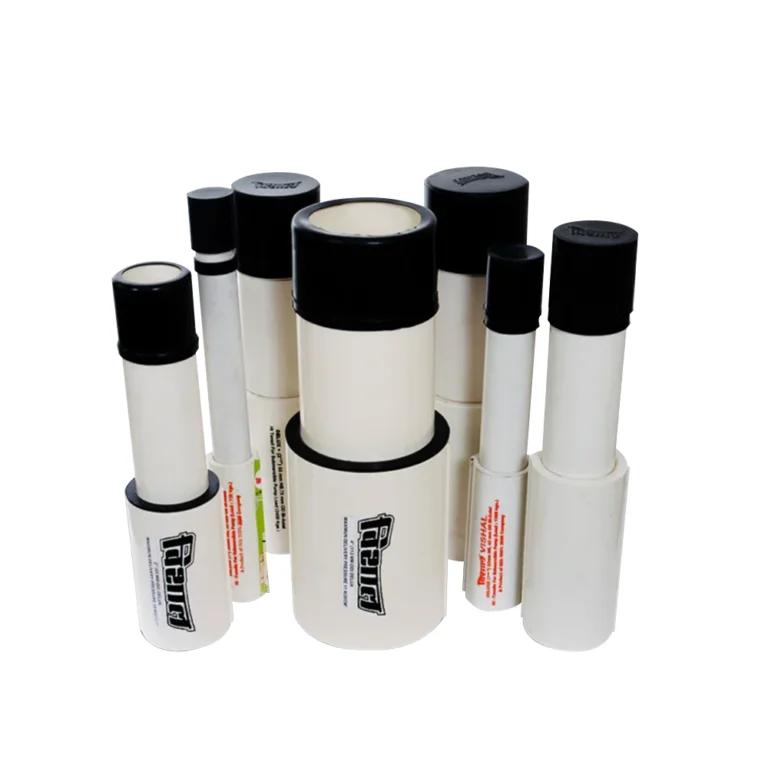

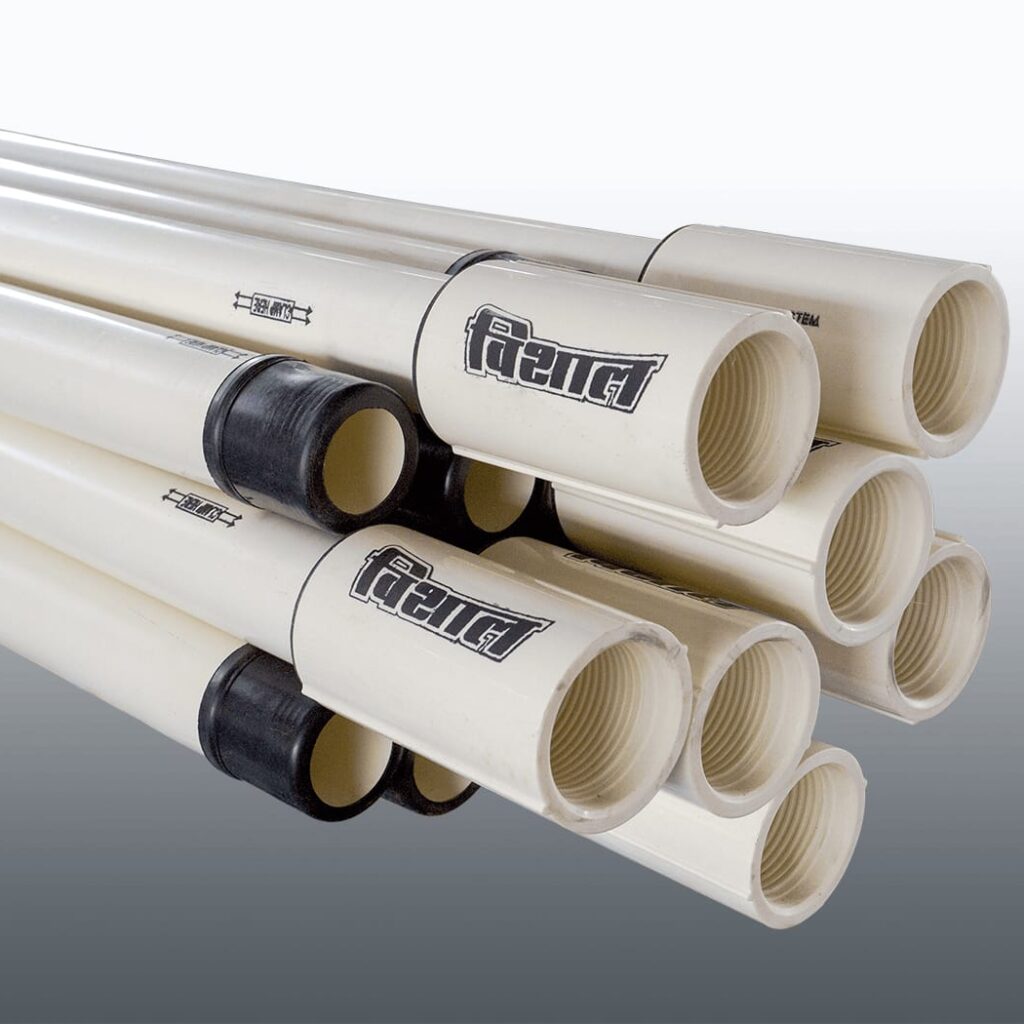

Vishal Column Pipe
Features
• Economically friendly | • 100% leak proof | • High tensile strength | • Odorless & hygienic | • Easy installation & transportation
Size Range: From 32 mm to 110 mm
Pressure rating: Can be used to lower a submersible pump till 300 mtrs. Depth
Raw Material Grade: Best quality PVC resin and chemicals
Length: 3.1 meters or as per the requirement
USP: High Precision square threading
Application: Submersible lowering in Bore wells.

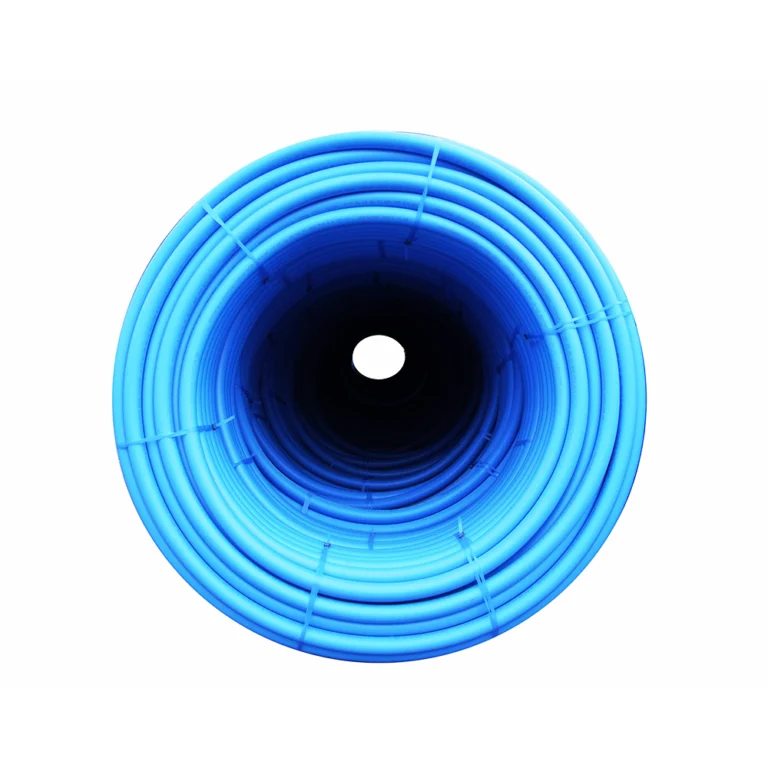

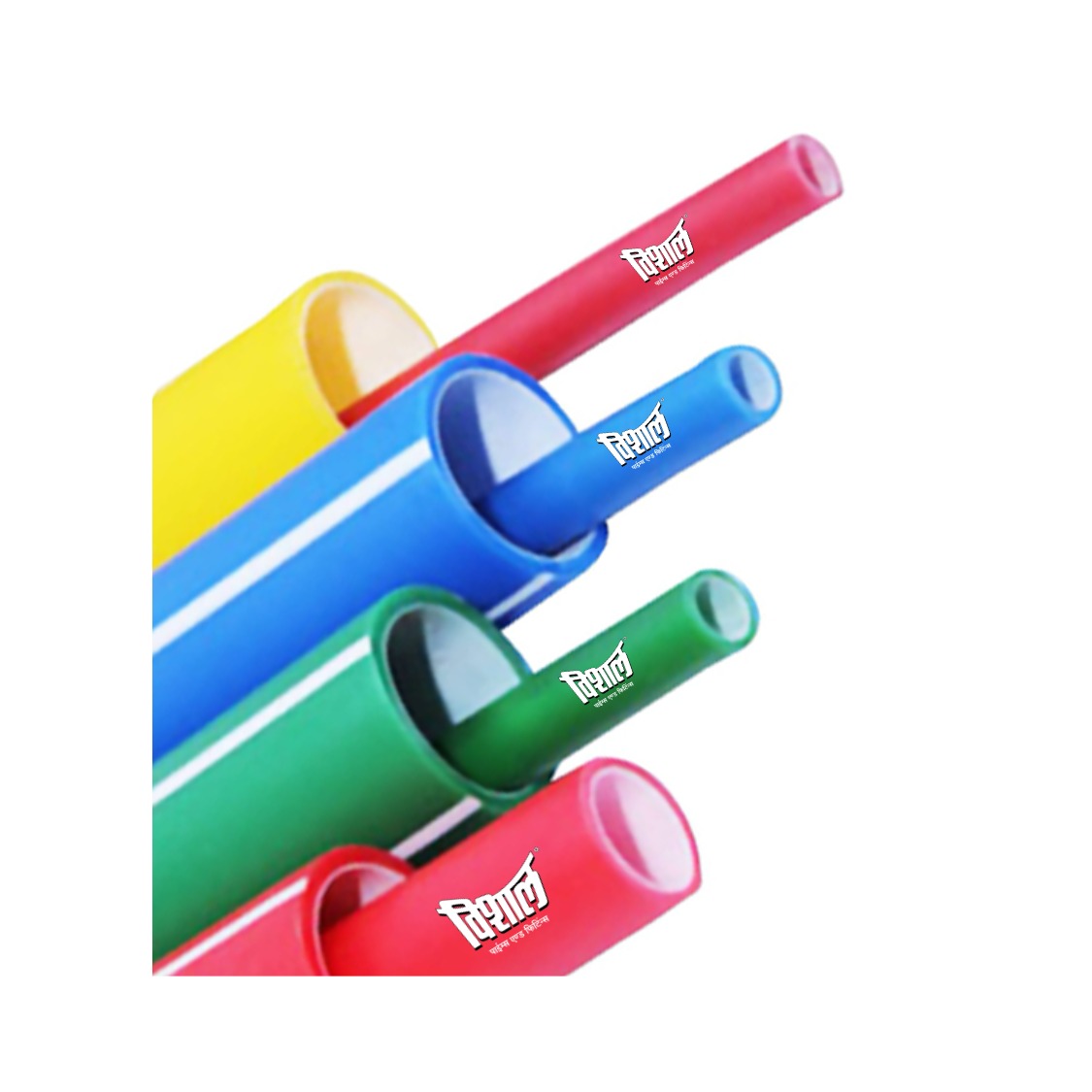

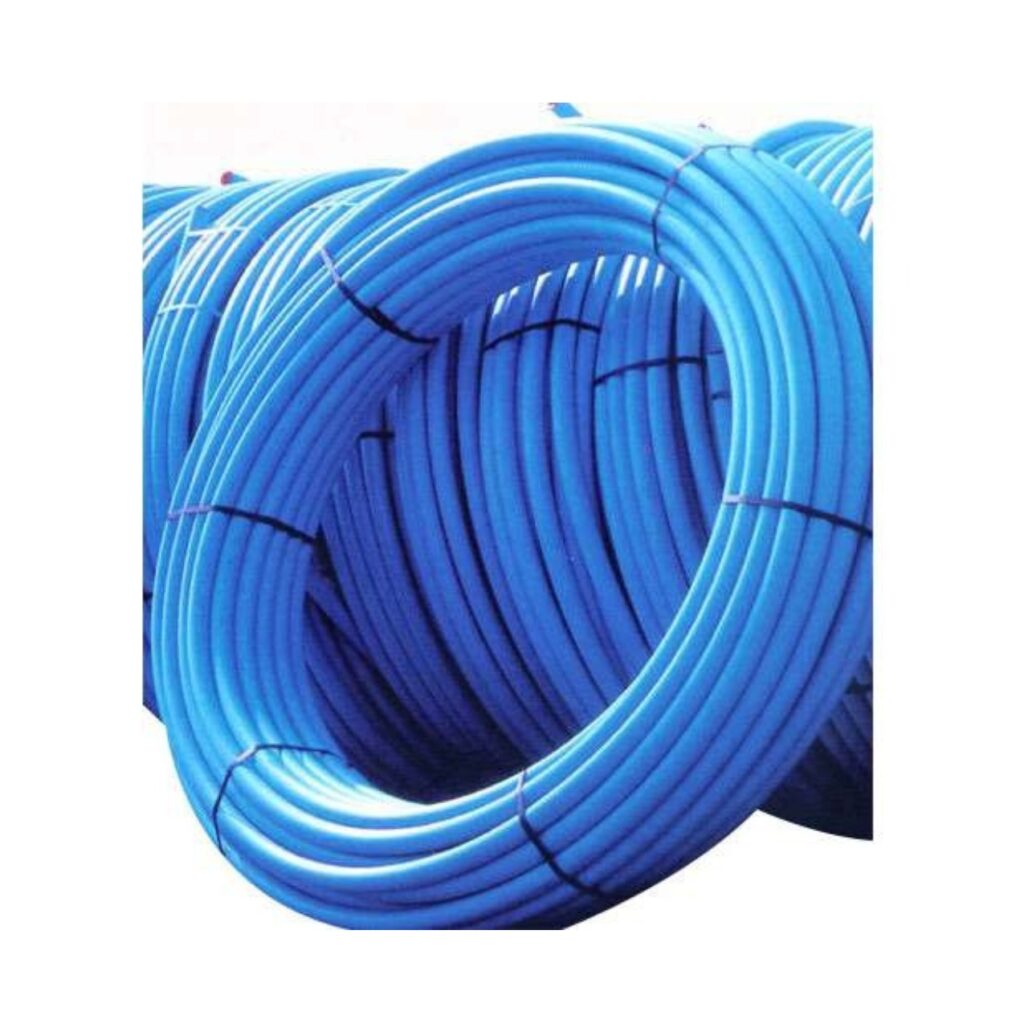

Vishal MDPE Pipe
Features
• Leak proof | • Affordable | • Robust | • Internally abrasion resistant | • Flexible & durable
Size Range: 16 mm to 315 mm
Pressure rating: 4 kg/cm2 to 20 kg/cm2
Temperature: -40 C to +60 C
Raw Material Grade: High Quality Virgin MDPE Material
Color: Blue for Water & Yellow for Gas
Quality: ISO 4427
Application: Colony Water Supply for Gas Distribution
Vishal Inline Drip
Features
• Longer operational life | • Available in various dimensions | • Excellent service life | • No effect of UV radiations | • Smoother inner surface | • Very less frictional losses
Size Range: 12 mm, 16 mm, 18 mm to 32 mm
Pressure rating: Class 1 to 3
Temperature: 10 C to 60 C
Raw Material Grade: Virgin PE Granules and Drippers
Quality: IS : 13488
Application: Fruit farming, Floriculture, Horticulture, irrigation with high accuracy of water supply
Drip Dropping: 2LPH / 4LPH
Distance of Drippers: 20 cm to 150 cm or as per requirement
Types & Category: Based on emission rate of emitters (2 LPH & 4 LPH), in such emitting pipes, the drippers are inserted inside the PE Pipe.
Specialty: Sand Guard Technology (Raised portion at inlet of drippers) features available

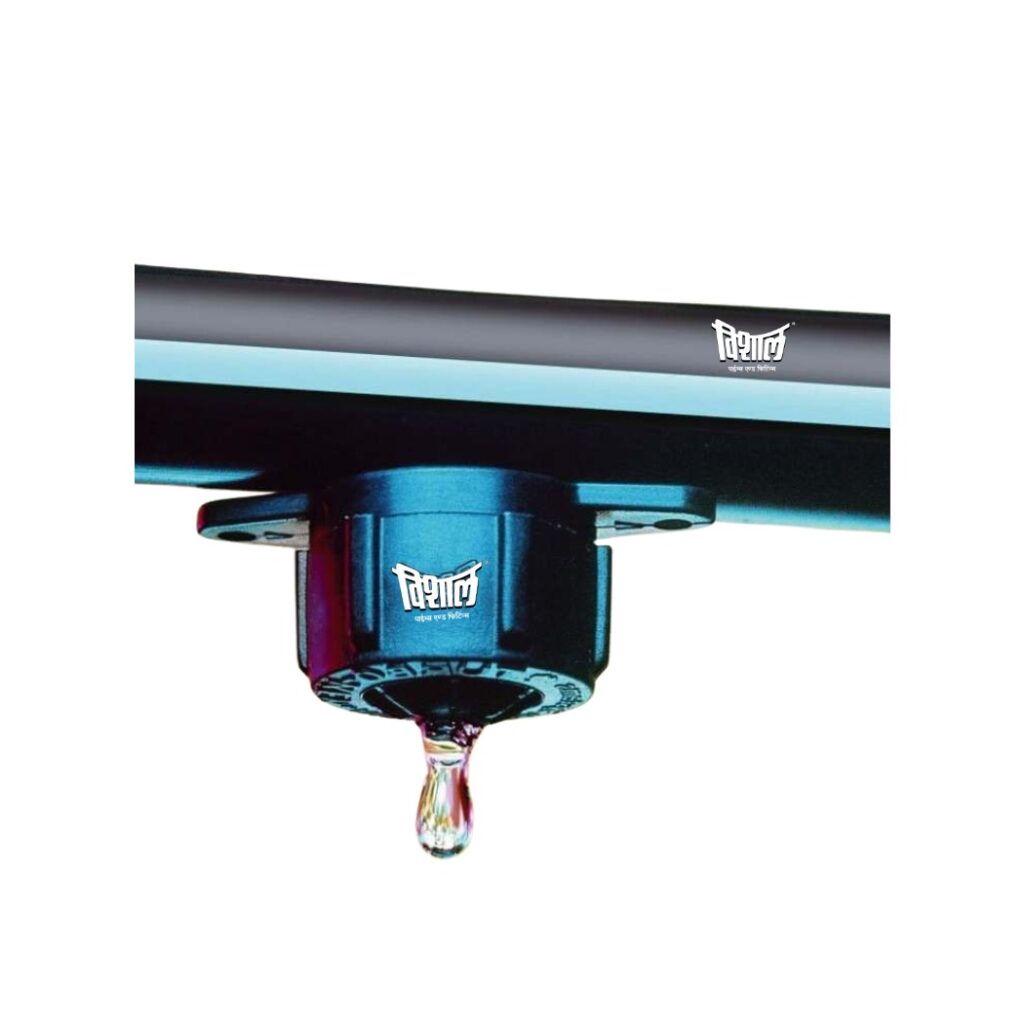

Vishal Online Drip
Features
• Can withstand environmental effects | • Light in weight | • Long durability | • Corrosion resistance
Size Range: 12 mm to 32 mm
Pressure rating: Class 1 to 3
Temperature: 10 C to 60 C
Raw Material Grade: High quality Virgin PE Granules
Quality: IS 12786 & IS 13487
Application: Irrigation with high use of Technology, Floriculture, Fruit Farming
Drip Distance & Drip Drop: Can vary as per the requirement of crop
Drippers: 2 LPH / 4 LPH / 8 LPH
Types & Category: Online drip pipes are inserted outside the PE Pipe.

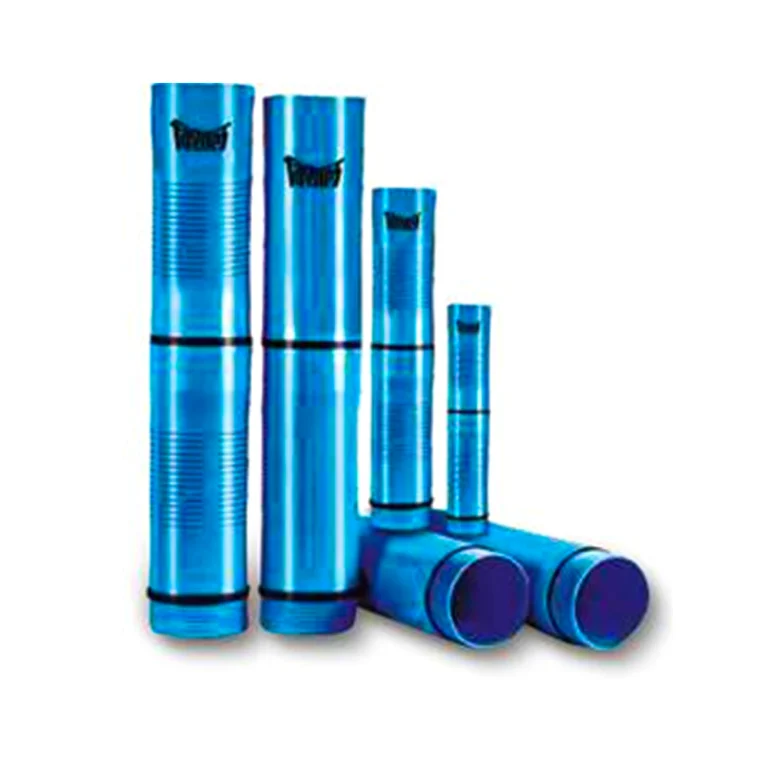

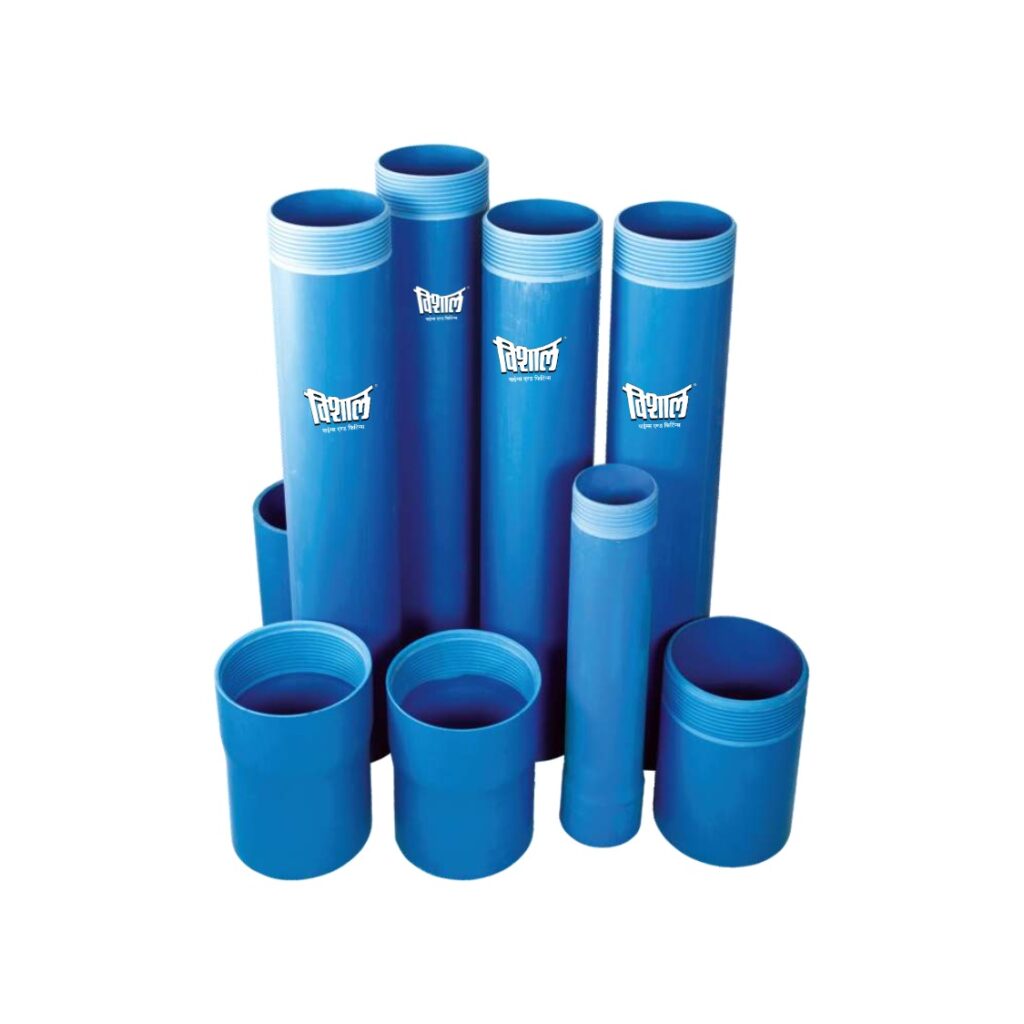

Vishal Cassing Pipe
Features
• Light weight | • Easy in installation and transportation | • Long lasting life | • Resistant to rusting | • Durable | • Maintenance free
Size Range: 90 mm to 225 mm
Pressure rating: 2.5 kg to 12.5 kg & CM & CS Casing
Raw Material Grade: Best Quality PVC Resin and Chemicals
Length: Normally 6 mtrs / 3 mtrs length or as specified by the customers
Application: Cover Pipe for Bore Wells

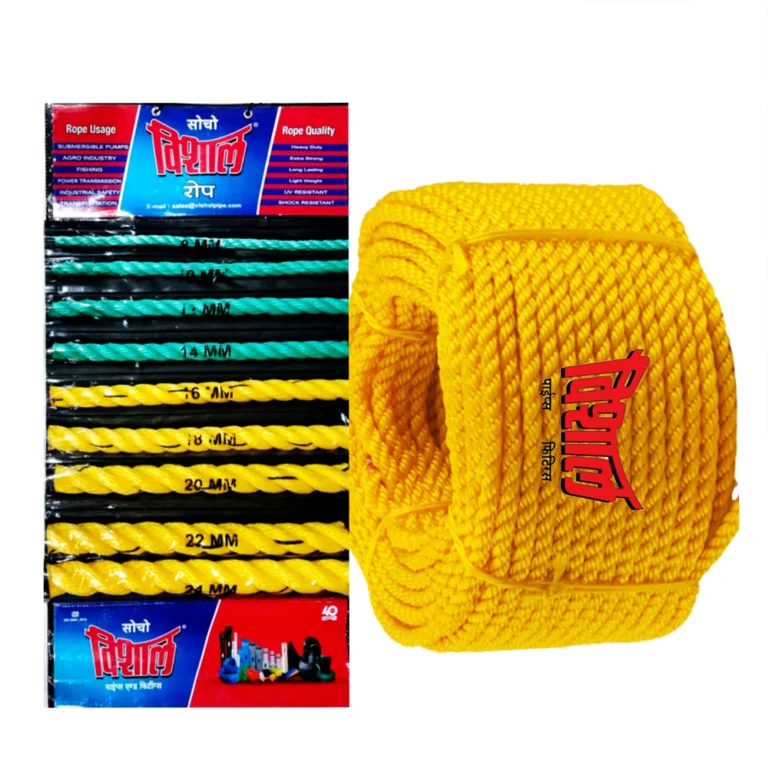

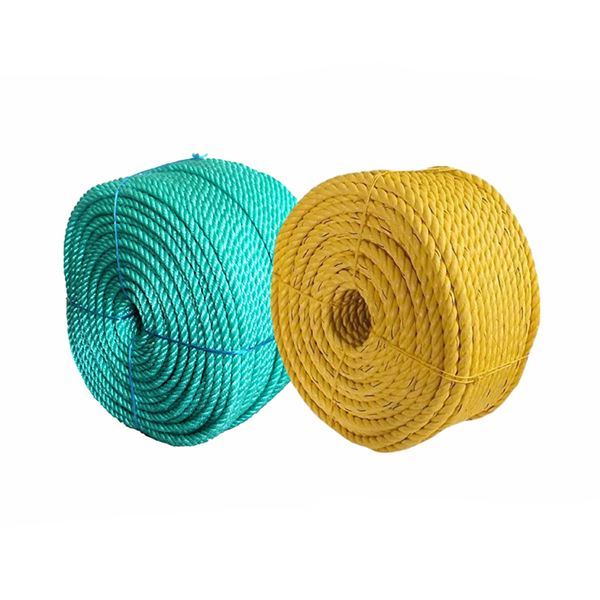

Vishal Rope
Features
Size mm: 8 mm to 26 mm
Color: Green Yellow
Material: PP
Rope Pattern: Plain
Usage: Specially for Submersible Boring

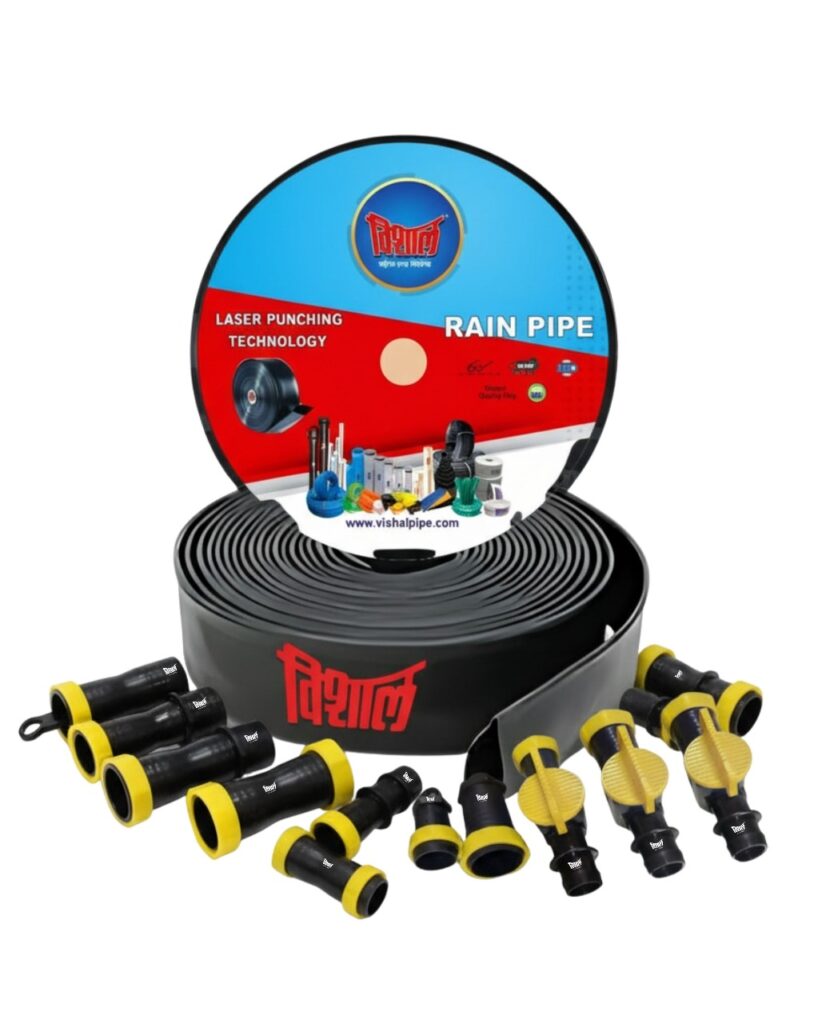

Vishal Rain Pipe & Fitting
Features
Size Range: From 40 mm to 100 mm
Color: Black
Thickness: 300 Micron
Application: To furnish the varying desires of our customers, we are immersed in offering a world class consignment of Rain Pipe.
Vishal Duct Pipe
Features
• Environment Stress Crack Resistance (ESCR) | • Impact Resistance | • Crush Resistance | • Temperature Resistance | • Low Coefficient of Friction | • Ultraviolet (UV) protection | • Weather Proof | • Light Weight
Size mm: From 32 mm to 110 mm
Pressure rating: All pressure ratings
Temperature: -40 C to + 60 C
Raw Material Grade: Available in PE63 Grade UV Stabilized Virgin HDPE granules
Colors: Variety of colors as per the demand
Quality: Anti Rat, UV stabilized, Pre Lubricated, Silicon coated, Laboratory Tested
Facility: Rope insertion on demand
Application: Optical Fiber Cable ducting, Telecom Industry, Electrical Industry, Innovative Solution for Underground Cable Installation

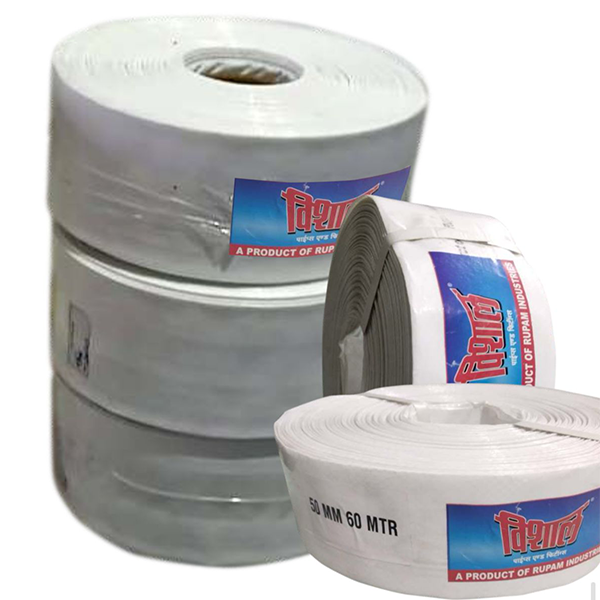

Vishal HDPE Lay Flat (Punchar Pipe)
Features
Size mm: 40 mm to 200 mm
Diameter: 63mm
Color: white
Material: HDPE
Application: Agriculture Use

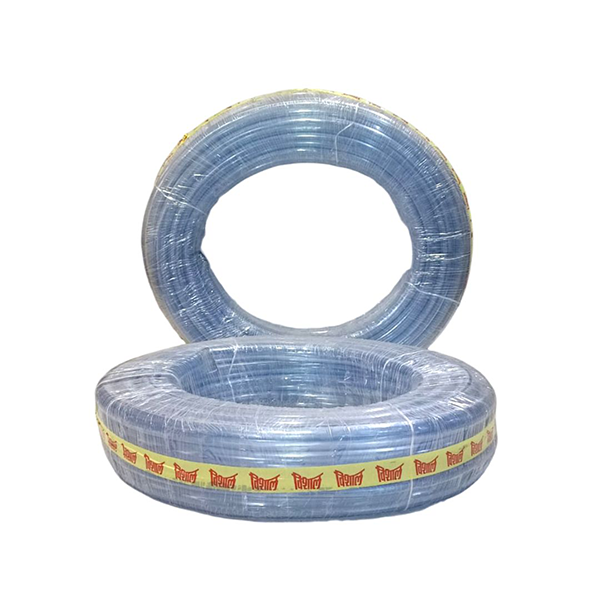

Vishal Sidreel Pipe
Features
• Long life | • Tough & strong |
• Light weight | • Smooth inner surface

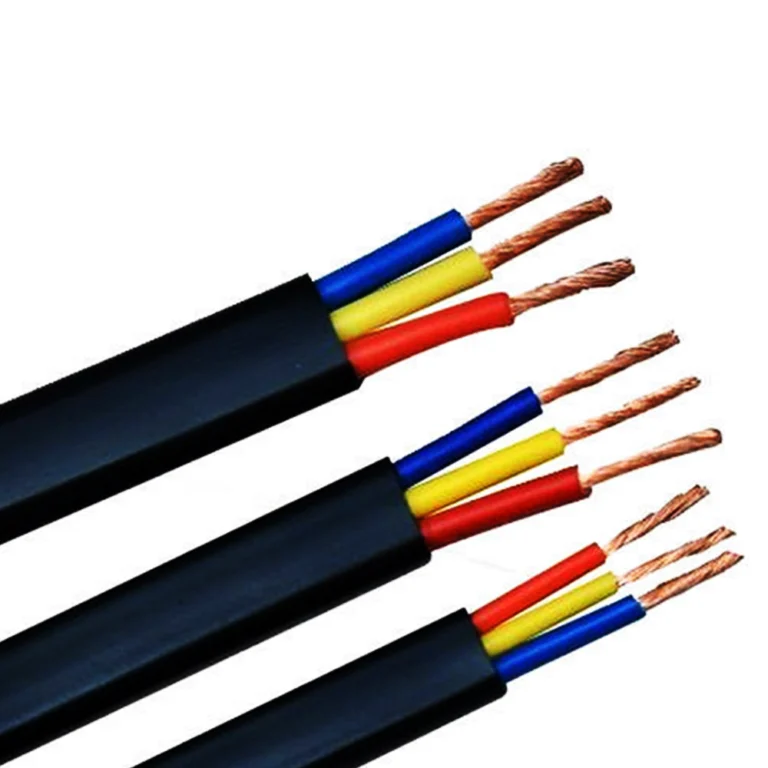

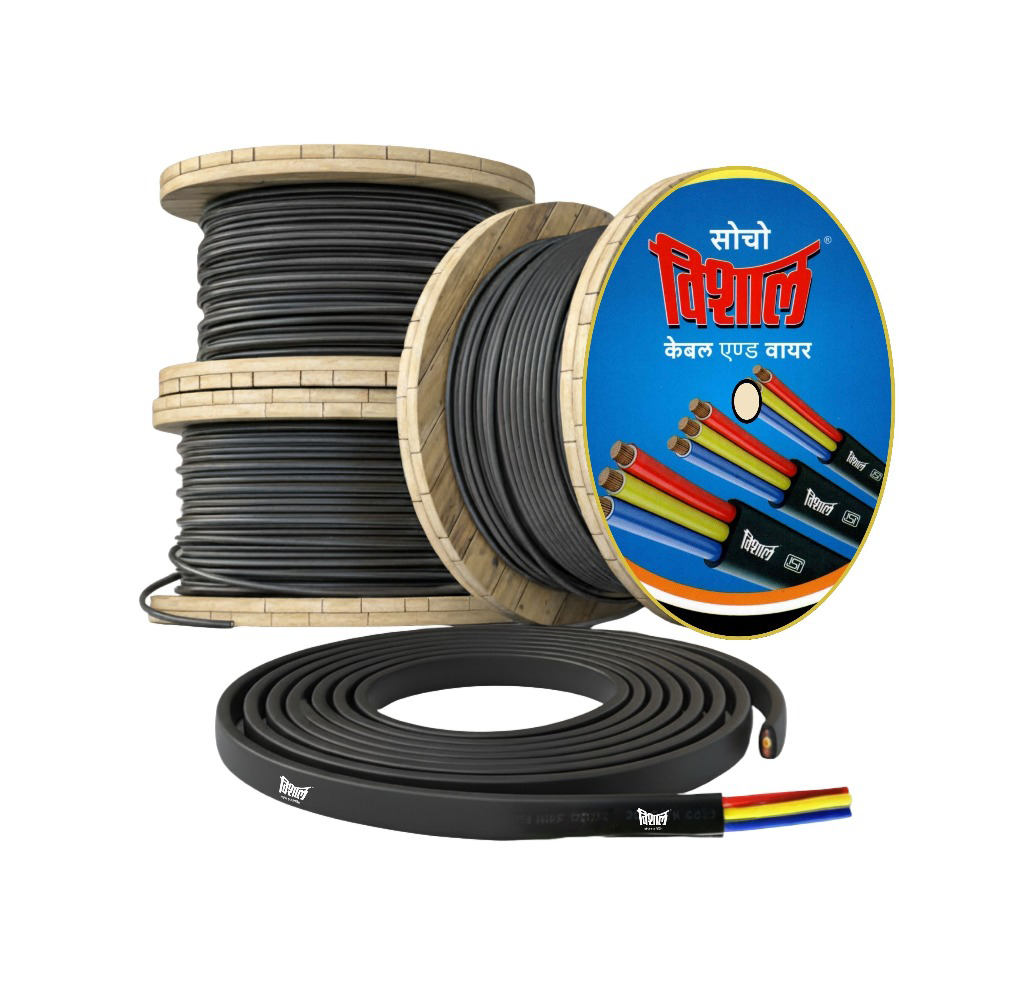

Vishal Submersible Cable
Features
No. of Core: 3 Core
Size: 2.5 to 6 sq mm
Core Material: PVC
Wire Material: Copper

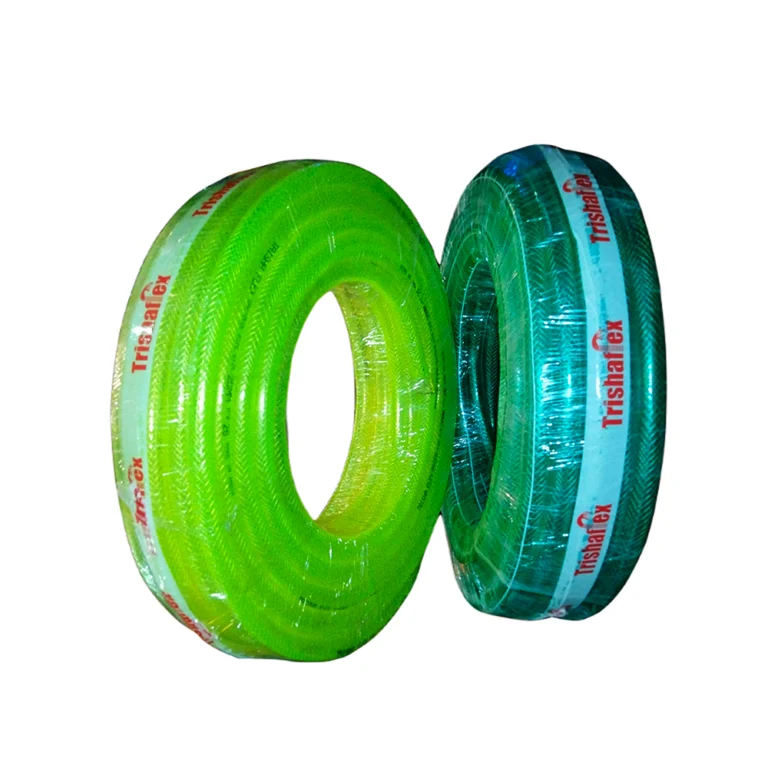

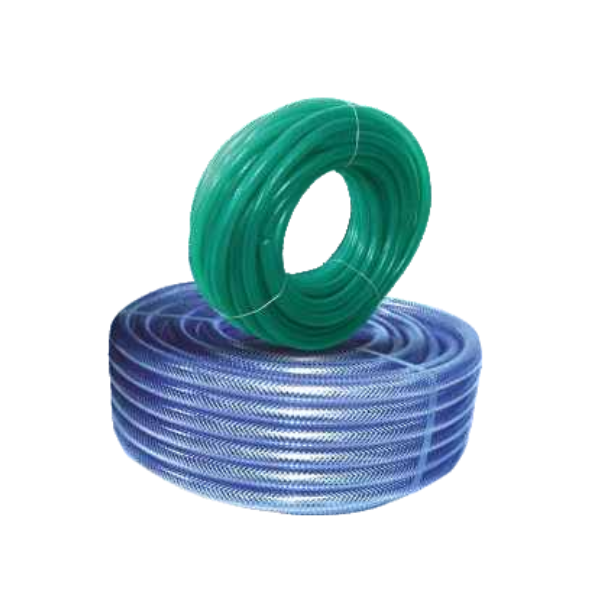

Vishal Breaded Pipe
Features
• Various dimensions available | • No frictional losses | • Long life | • Affordable
Size mm: 8 mm to 50 mm
Pressure rating: All Pressure
Temperature: 0 to 70 C
Raw Material Grade: Best quality PVC Resin and Chemicals
Colors: Blue, Green, White & Yellow
Application: Pressure pipe & Gardening pipe

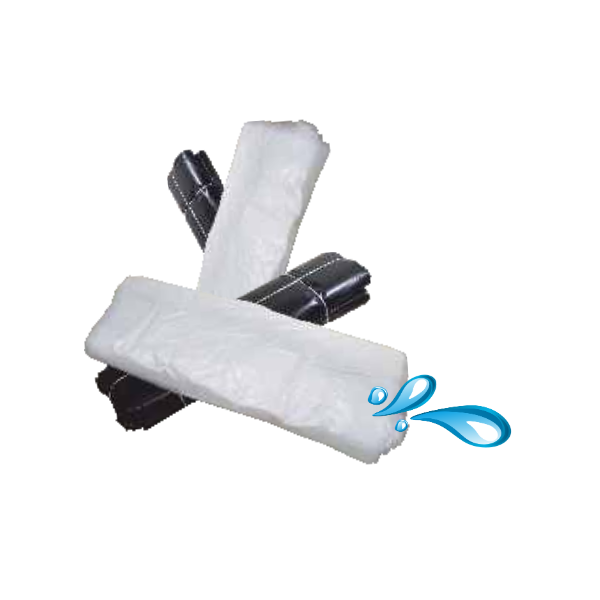

Vishal Tarpauline
Features
• Temperature resistant | • High tensile, tear and puncture strength | • Water & oil proof | • Flexible | • Durable & reliable performance | • Dust free | • Washable | • Available in variety of colors
Size Range: 9 ft to 24 ft
Raw Material Grade: Vergin LLDPE granuals
Application: • Agricultural & Industrial applications | • Soyabean & other foods grains, sugar, cement storage | • Automobile industries | • Poultry farms | • Spice boards

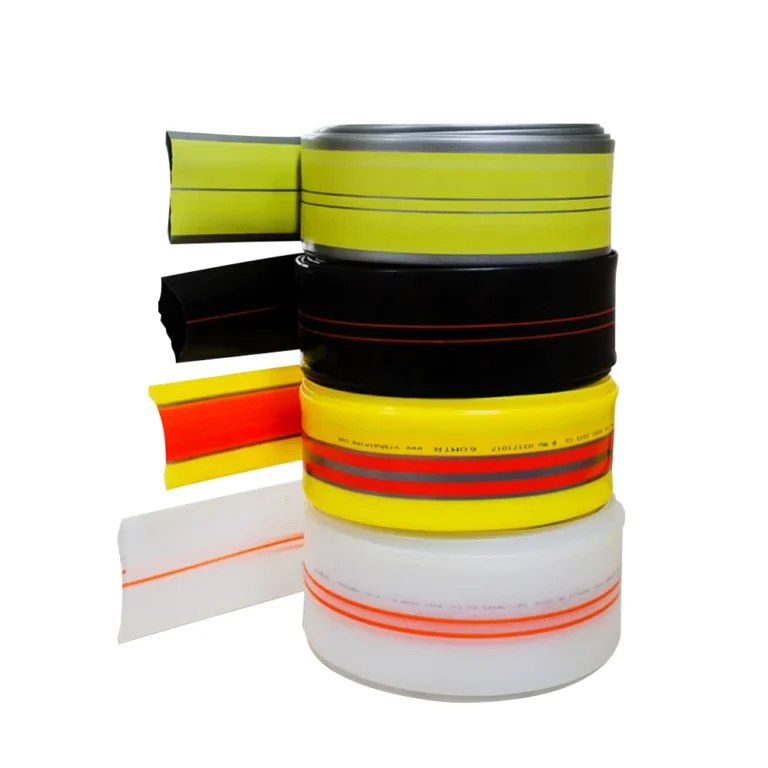

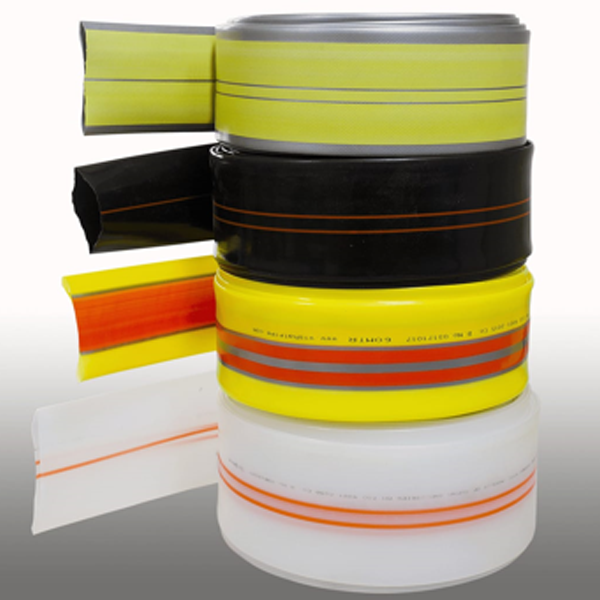

LLDPE Pipe
Features
Size mm: From 33 mm to 200 mm
Raw Material Grade: LLDPE Granules
Color: Yellow, Silver, Black, White, Blue, Green Or Multi Colour
Application: Free Flow Water Supply In Irrigation & Flood Irrigation

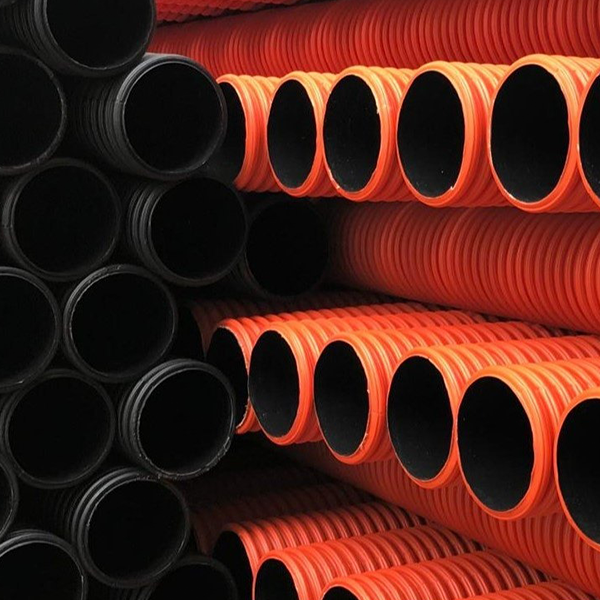

DWC Pipe
Features
• Temperature resistant | • High tensile, tear and puncture strength | • Water & oil proof | • Flexible | • Durable & reliable performance
Connection Type: Socket
Temperature Range: -10 to 60
Material Grade: Grade A
Use: Irrigation
Product Model: DWC-50
Application: This 50mm lightweight PVC pipe is perfect for irrigation and industrial use. Durable, heat-resistant, and capable of withstanding up to 6 bar pressure, it features a smooth surface for efficient flow and easy socket connections for quick installation. Weighing just 1.5 kg, it’s portable and reliable for all your piping needs.

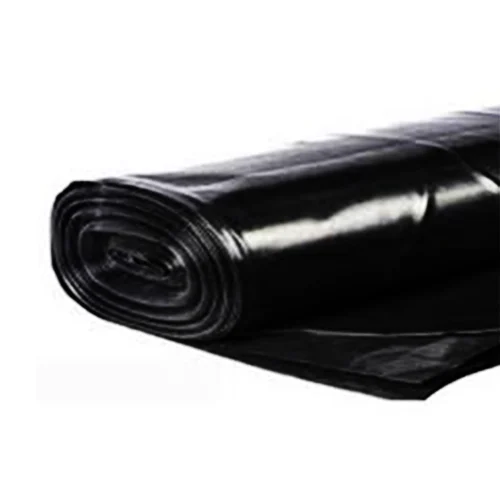

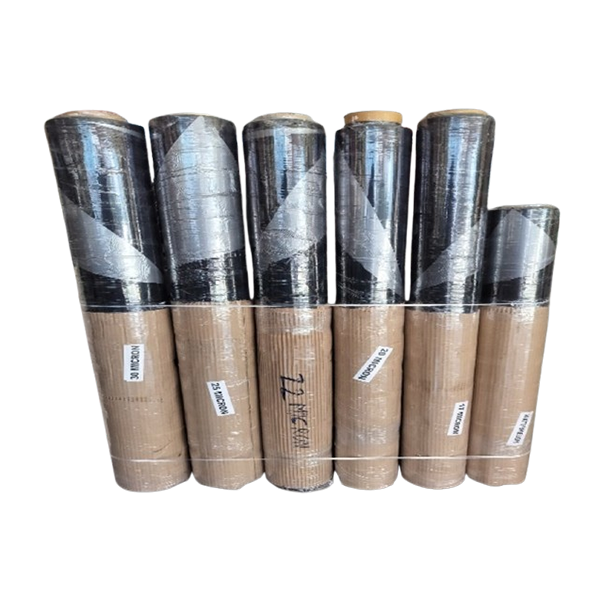

Mulching Film
Features
Material: LLDPE, With Blended LDPE , UV Stablished.
Size Micron: 18 Micron To 30 Micron
Application: Mulching film is used in agriculture to improve soil quality and crop yields by conserving soil moisture, suppressing weeds, regulating soil temperature, and protecting plants from pests and diseases.

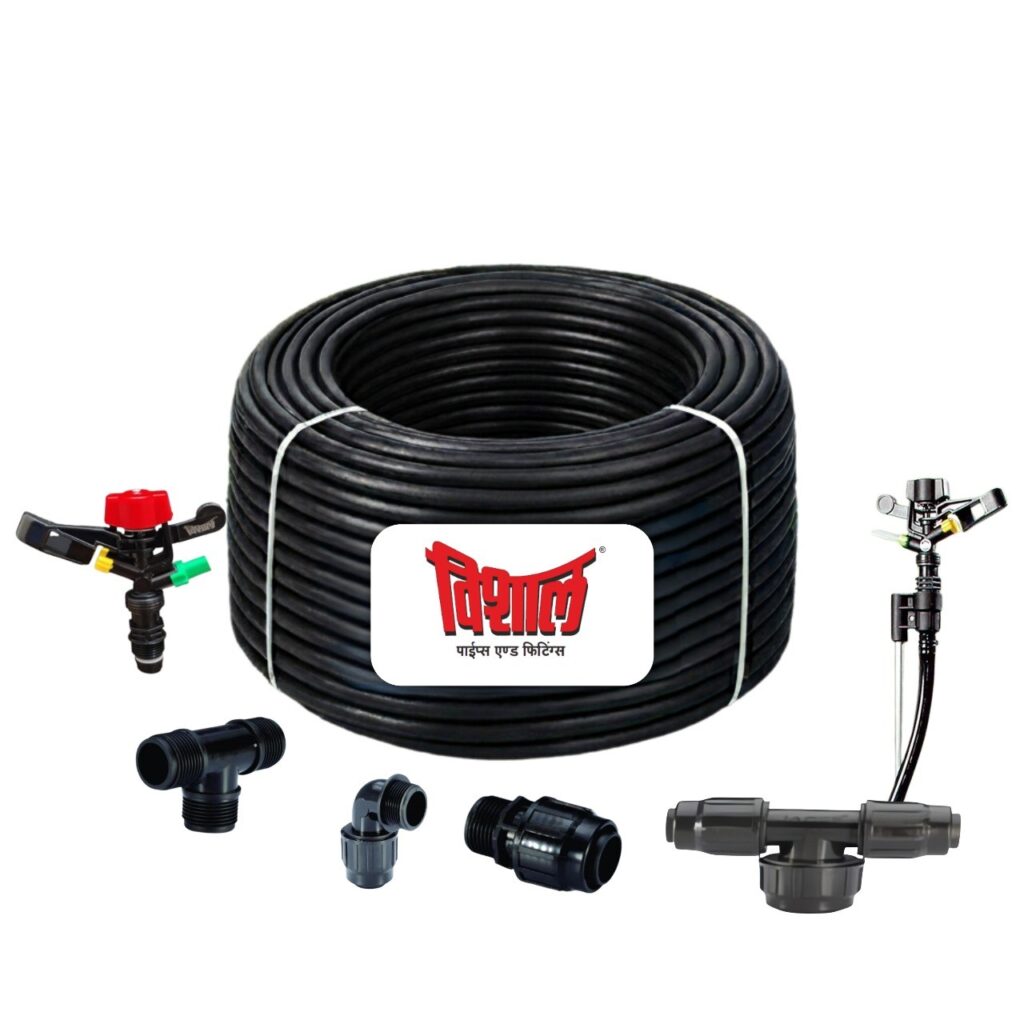

Lateral Pipe
Features
• Temperature resistant | • High tensile, tear and puncture strength | • Water & oil proof | • Flexible | • Durable & reliable performance
Colour: Black
Size: 32 MM Lateral Pipe
Durable and Long-Lasting: Built to withstand harsh agricultural environments, including UV exposure and chemical treatments, ensuring a long service life.
Efficient Water Distribution: Designed to deliver water directly to the root zone of plants, enhancing water efficiency and promoting healthy crop growth.

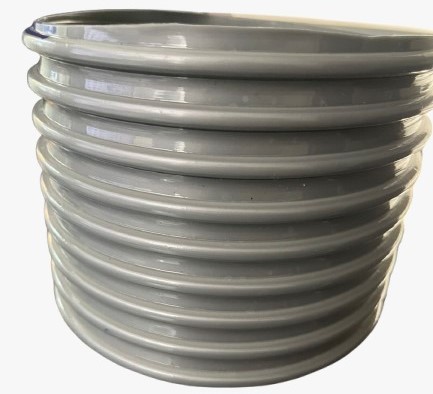

Duct Hose
Features
Material: PVC
Unit Length: 20m-30m
Fluid Type: Compressed Air
Application: We also offer PU hoses in various wall thicknesses. These heavy-duty PU hoses are primarily used for conveying materials such as powders, granules, and certain chemicals. Their inner surface is smooth, ensuring efficient and consistent material flow.
